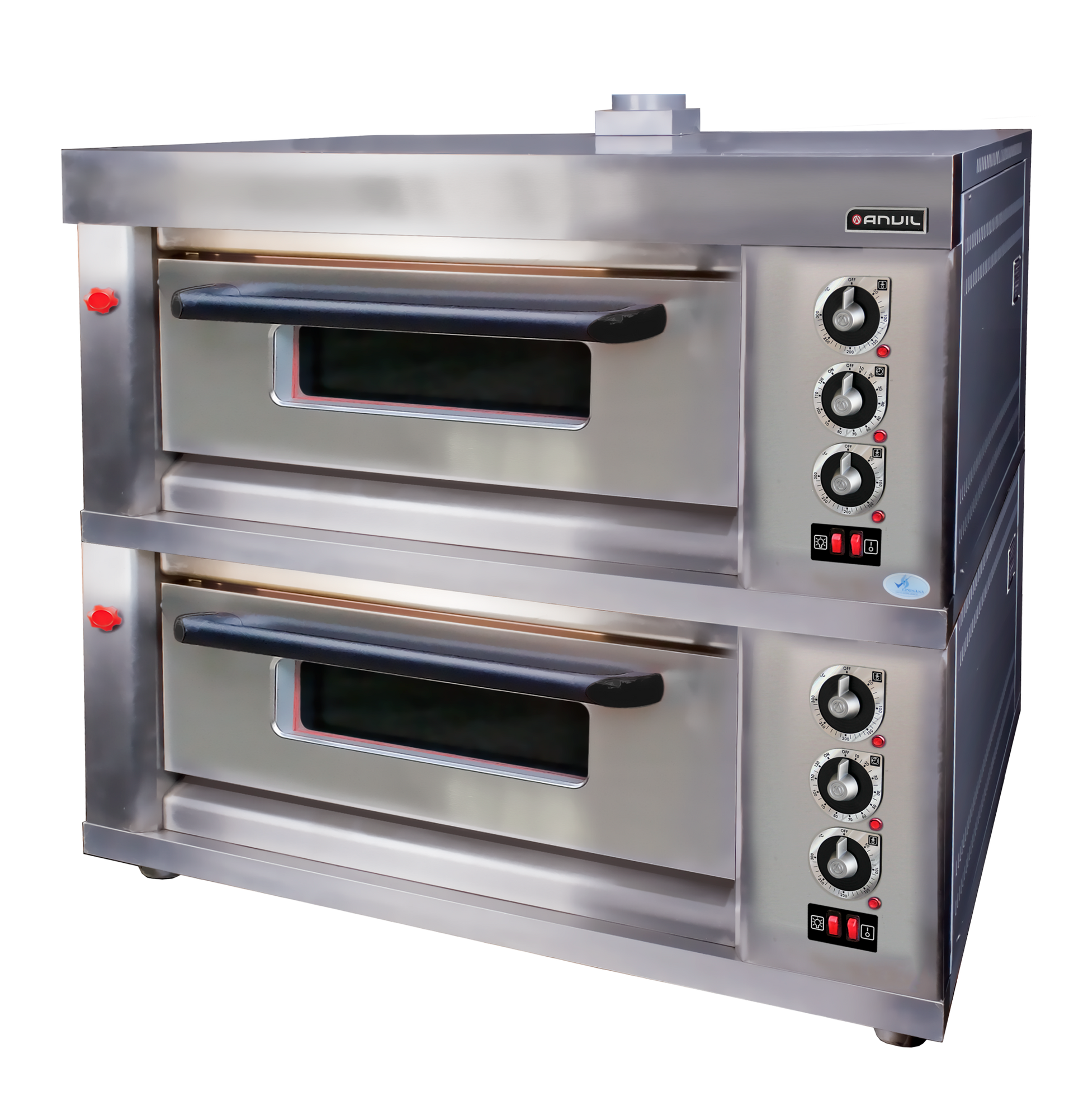

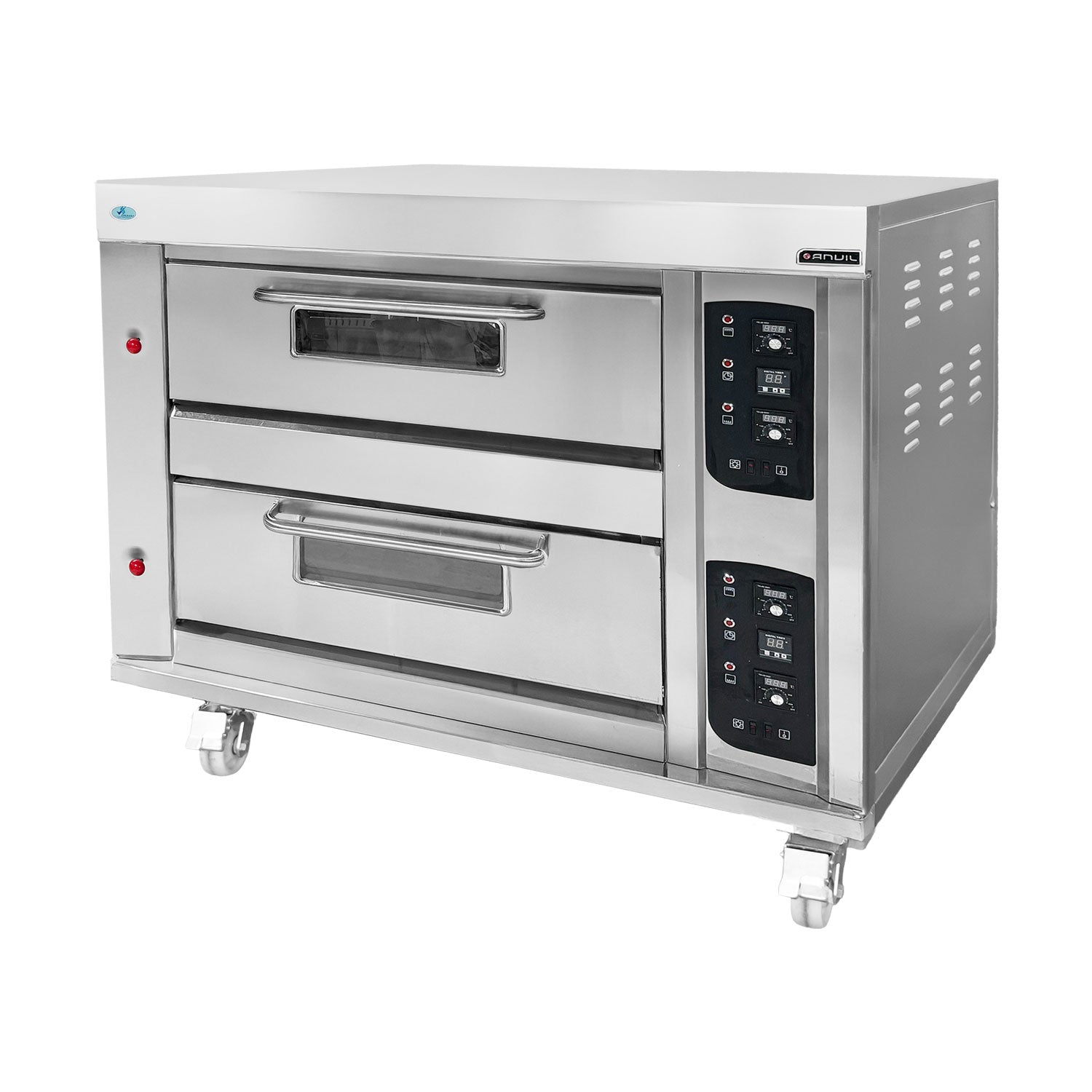

Anvil DOA5002-R01 Double Deck Gas Oven – 4 Tray

The Anvil DOA5002-R01 double deck gas oven is designed for professional bakeries, pizzerias, restaurants and catering kitchens requiring high-capacity baking with limited electrical demand. Two independent baking chambers provide space for up to eight 300mm pizzas or four 600 × 400mm baking trays. Thermostatically controlled top and bottom burners allow precise heat adjustment, while the specialised burner design promotes even temperature distribution. The oven reaches temperatures up to 400°C and features automatic ignition for straightforward operation. An approved gas installer must connect the unit before use.

Features & Specifications

• Double-deck gas oven for commercial baking

• Independent top and bottom burner control

• Even heat distribution across both chambers

• Maximum temperature: 400°C

• Stainless steel fascia panel

• Zintec mild-steel chamber interiors

• Fully automatic ignition system

• Single-phase electrical connection

• LPG operation

• Gas regulator not included

• Output: 72,000 BTU

• Capacity: Eight 300mm pizzas

• Tray capacity: Four 600 × 400mm

• Chamber dimensions: 860 × 640 × 230mm

• Overall dimensions: 1340 × 900 × 1260mm

• Voltage: 230V

• Power: 0.4kW

• Weight: 170kg

• Approved gas installer required

What’s in the Box

• 1 × Anvil double deck oven

• 4 × 600 × 400mm baking trays

• User documentation, where applicable
