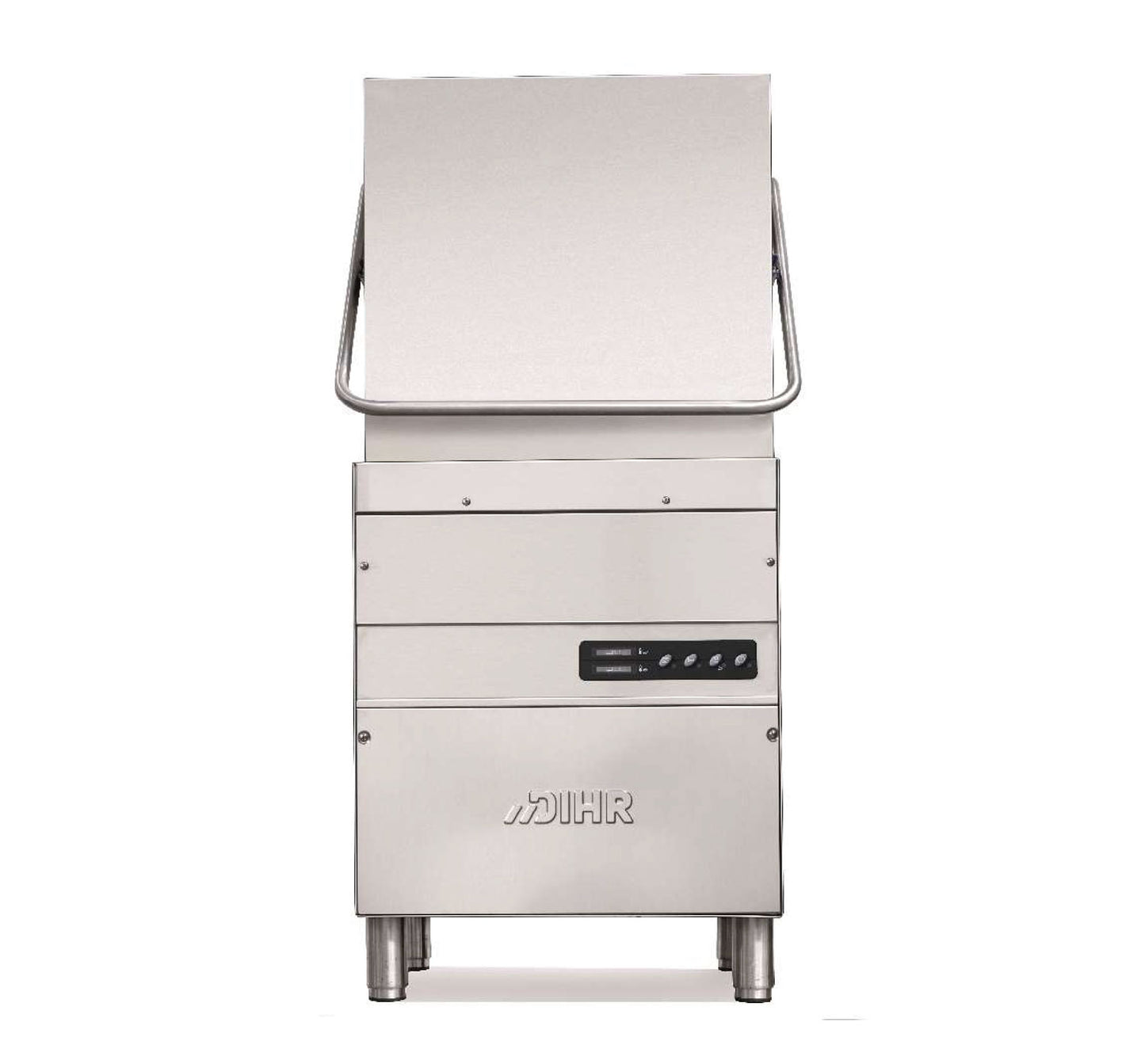

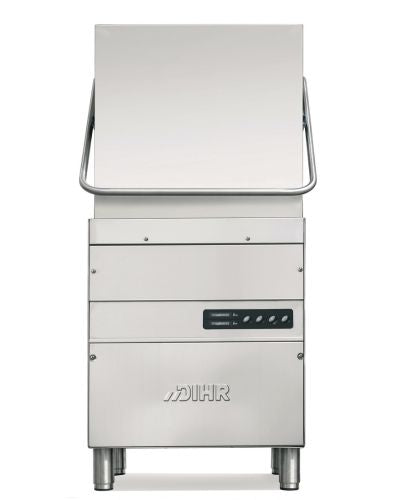

DIHR HT11 Commercial Hood-Type Dishwasher | 500mm Basket

The DIHR HT11 hood-type dishwasher is designed for busy restaurants, hotels, catering facilities and other high-volume commercial kitchens. Its 500 x 500mm basket accommodates plates up to 410mm in diameter, while two selectable cycles deliver up to 70 racks per hour with 55C inlet water. Hood-operated start and stop functions support an efficient pass-through washing process, with flexible linear or corner installation layouts. Independent wash and rinse arms, stainless steel surface filters and integrated pump filtration simplify daily operation. The HT11 requires a three-phase electrical supply and installation by a qualified technician.

Features & Specifications

• Two selectable wash cycles

• Hood-operated automatic start and stop

• Independent stainless steel wash arms

• Composite-material rinse arms

• Stainless steel surface filters

• Deep-drawn wash tank bottom

• Integrated pump filter

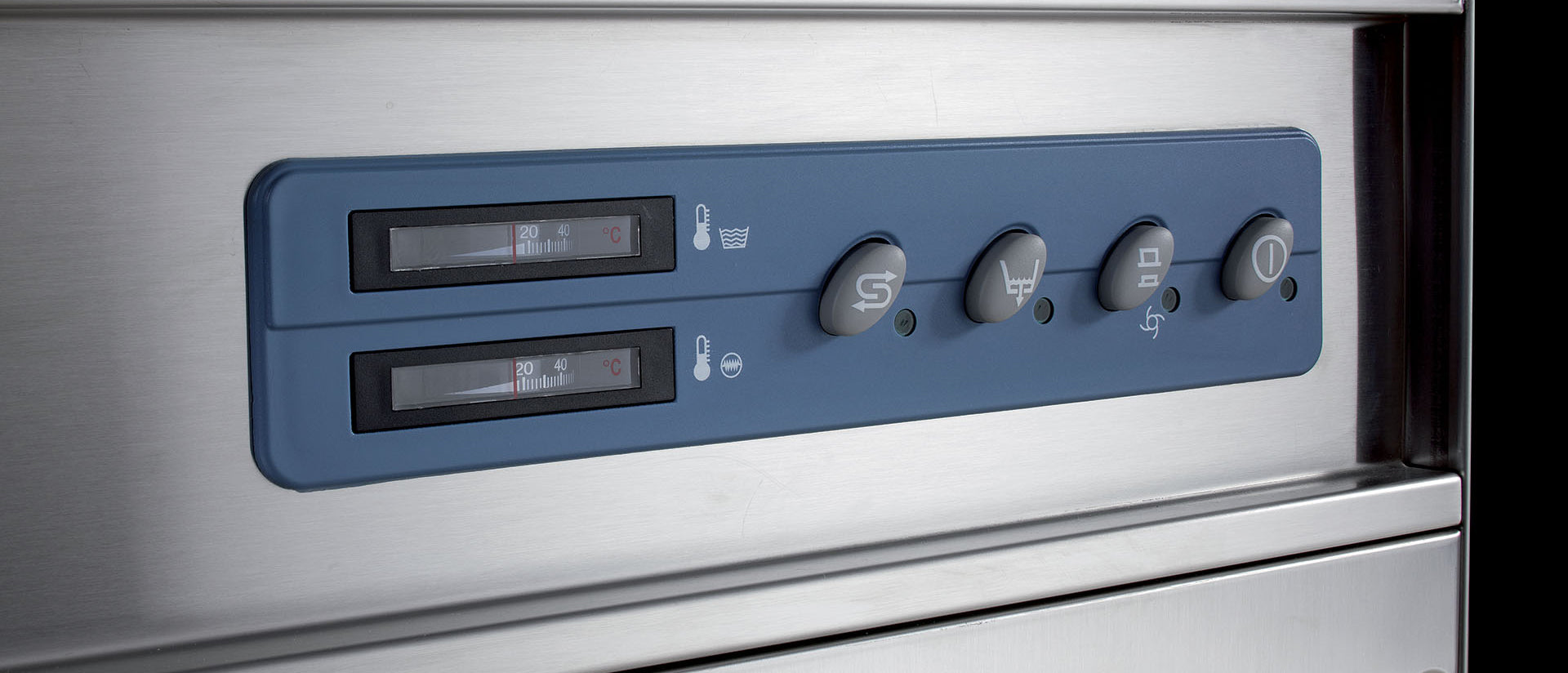

• Tank and boiler thermometers

• Removable basket support

• Linear or corner installation layouts

• Built-in rinse-aid dispenser

• Qualified technician installation required

• Cycle times: 50 and 120 seconds

• Maximum output: 70 racks hourly

• Water consumption: 2.8 litres per cycle

• Basket size: 500 x 500mm

• Maximum plate diameter: 410mm

• Tank capacity: 30 litres

• Boiler capacity: 10 litres

• Wash pump power: 1.12kW

• Wash pump flow: 630 litres/minute

• Inlet pressure: 200 - 400kPa

• Supply: 380 - 415V, three-phase, 50Hz

• Installed power: 10.12kW

• Dimensions: 720 x 735 x 1445mm

• Open hood height: 1880mm

• Weight: 100kg

• Sound level: 70dB(A)

What's in the Box

• 1 x DIHR HT11 Dishwasher

• 2 x Plate racks

• 1 x Glass rack

• 1 x Cutlery holder

• User documentation, where applicable
