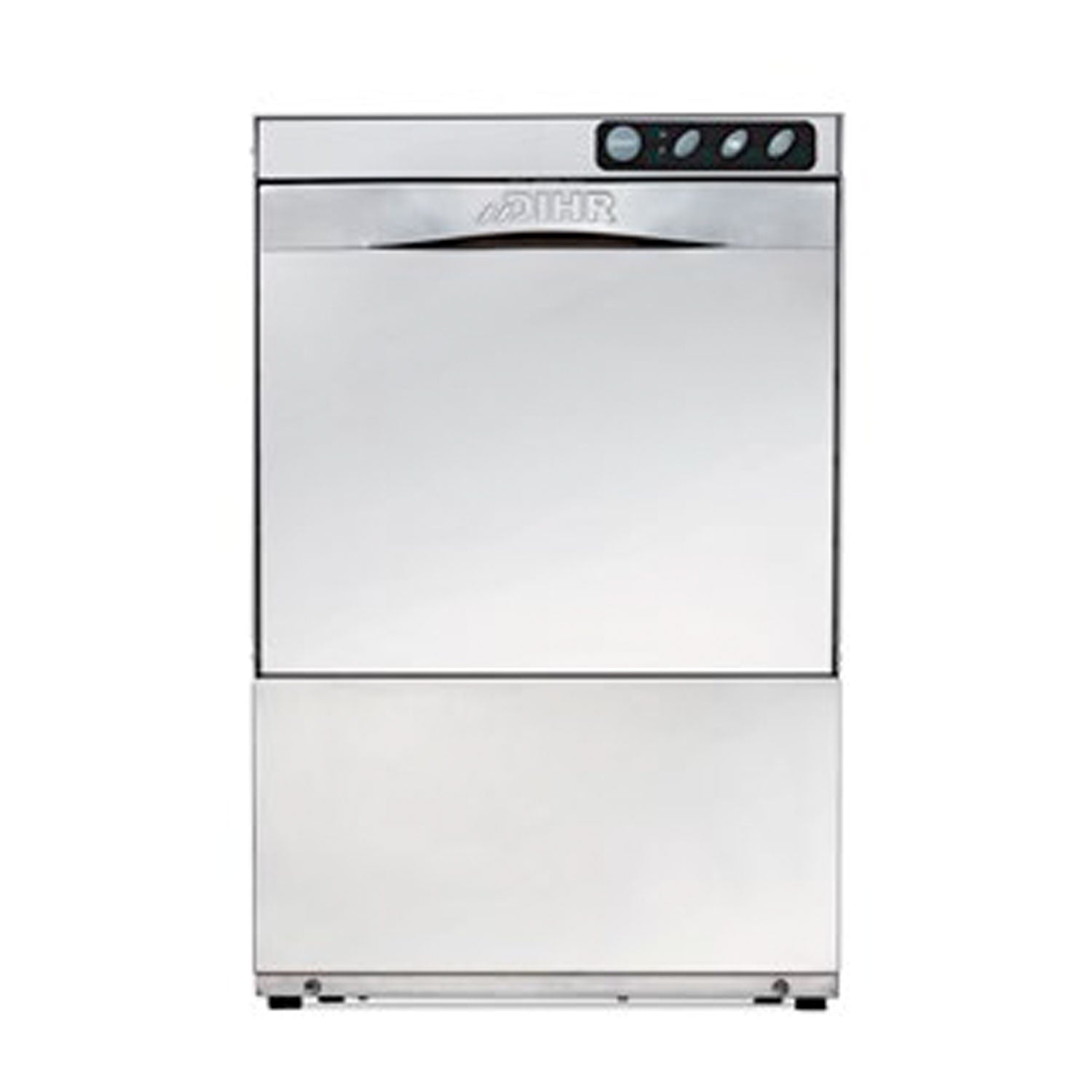

DIHR CS40 Commercial Undercounter Dishwasher – 400mm Basket

The DIHR CS40 is a robust commercial undercounter dishwasher designed for hospitality kitchens and professional wash areas. Its 400 × 400mm basket and 305mm glass clearance provide practical capacity for washing glassware, plates and utensils. A 120-second cycle processes up to 30 racks per hour when supplied with 55°C inlet water. The AISI 304 stainless steel body, insulated double-skin door and sloped tank support reliable daily operation and easier cleaning. Thermostop ensures rinsing begins only once the boiler reaches 85°C, while the included detergent dispenser, rinse-aid dispenser and drain pump simplify operation.

Features & Specifications

• AISI 304 stainless steel construction

• Sound-insulated double-skin door

• Heat-insulated double-skin door

• Anti-shock door system

• Sloped tank with basket rails

• Non-drip internal roof

• Polypropylene wash and rinse arms

• Removable nozzles simplify cleaning

• Integrated wash pump protection

• Non-return valve prevents backflow

• Thermostop-controlled 85°C rinse

• Electromechanical push-button controls

• Single 120-second wash cycle

• Productivity: 30 racks hourly

• Cold-water productivity: 16 racks hourly

• Water consumption: 1.8 litres per cycle

• Basket size: 400 × 400mm

• Maximum glass height: 305mm

• Tank capacity: 14.5 litres

• Boiler capacity: 3.4 litres

• Wash pump flow: 120 litres/minute

• Inlet pressure: 200–400kPa

• Supply voltage: 220–240V, 50Hz

• Installed power: 2.59kW

• Dimensions: 450 × 535 × 700mm

• Weight: 37kg

• Noise level: Below 70dB(A)

What’s in the Box

• 1 × DIHR CS40 Dishwasher

• 1 × Detergent dispenser

• 1 × Rinse-aid dispenser

• 1 × Drain pump

• 1 × Thermostop system

• 1 × Plate rack

• 1 × Mesh rack

• 1 × Cutlery holder
