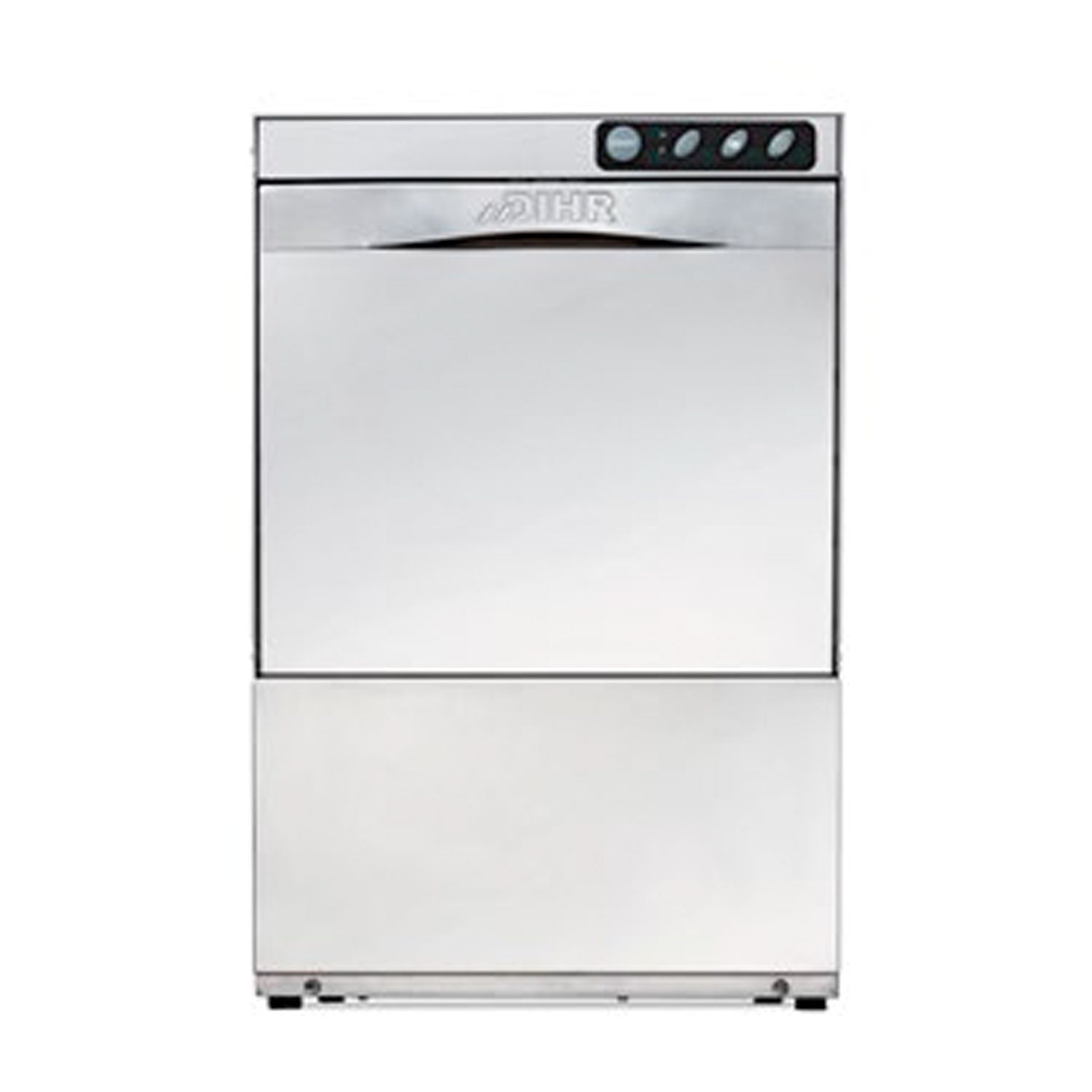

DIHR CS50 Commercial Undercounter Dishwasher – 500mm Basket

The DIHR CS50 commercial undercounter dishwasher provides reliable, high-capacity washing for restaurants, cafés, hotels and catering businesses. Its 500 × 500mm basket accommodates glassware up to 320mm high and plates up to 345mm in diameter. A 120-second cycle processes up to 30 racks per hour when connected to 55°C inlet water. The AISI 304 stainless steel body, insulated double-skin door and anti-shock system support durable daily use. Thermostop-controlled rinsing, integrated chemical dispensers and the included drain pump help deliver consistent results while simplifying operation in busy commercial kitchens.

Features

• AISI 304 stainless steel construction

• Sound and heat-insulated double-skin door

• Anti-shock door system

• Sloped tank with secured basket rails

• Non-drip roof protects freshly washed items

• Composite wash and rinse arms

• Removable nozzles simplify daily cleaning

• Integrated wash pump protection

• Non-return valve prevents water backflow

• Thermostop-controlled 85°C rinse cycle

• Electromechanical push-button controls

• Integrated rinse-aid dispenser

Specifications

• Cycle time: 120 seconds

• Maximum output: 30 racks hourly

• Cold-water output: 14 racks hourly

• Water consumption: 2.3 litres per cycle

• Basket size: 500 × 500mm

• Maximum glass height: 320mm

• Maximum plate diameter: 345mm

• Tank capacity: 29 litres

• Boiler capacity: 5.7 litres

• Supply: 220–240V, 50Hz

• Installed power: 3.2kW

• Dimensions: 590 × 600 × 850mm

• Weight: 57kg

• Noise level: Below 70dB(A)

What’s in the Box

• 1 × DIHR CS50 Dishwasher

• 1 × Detergent dispenser

• 1 × Rinse-aid dispenser

• 1 × Drain pump

• 1 × Thermostop system

• 1 × Plate rack

• 1 × Mesh rack

• 1 × Cutlery holder
