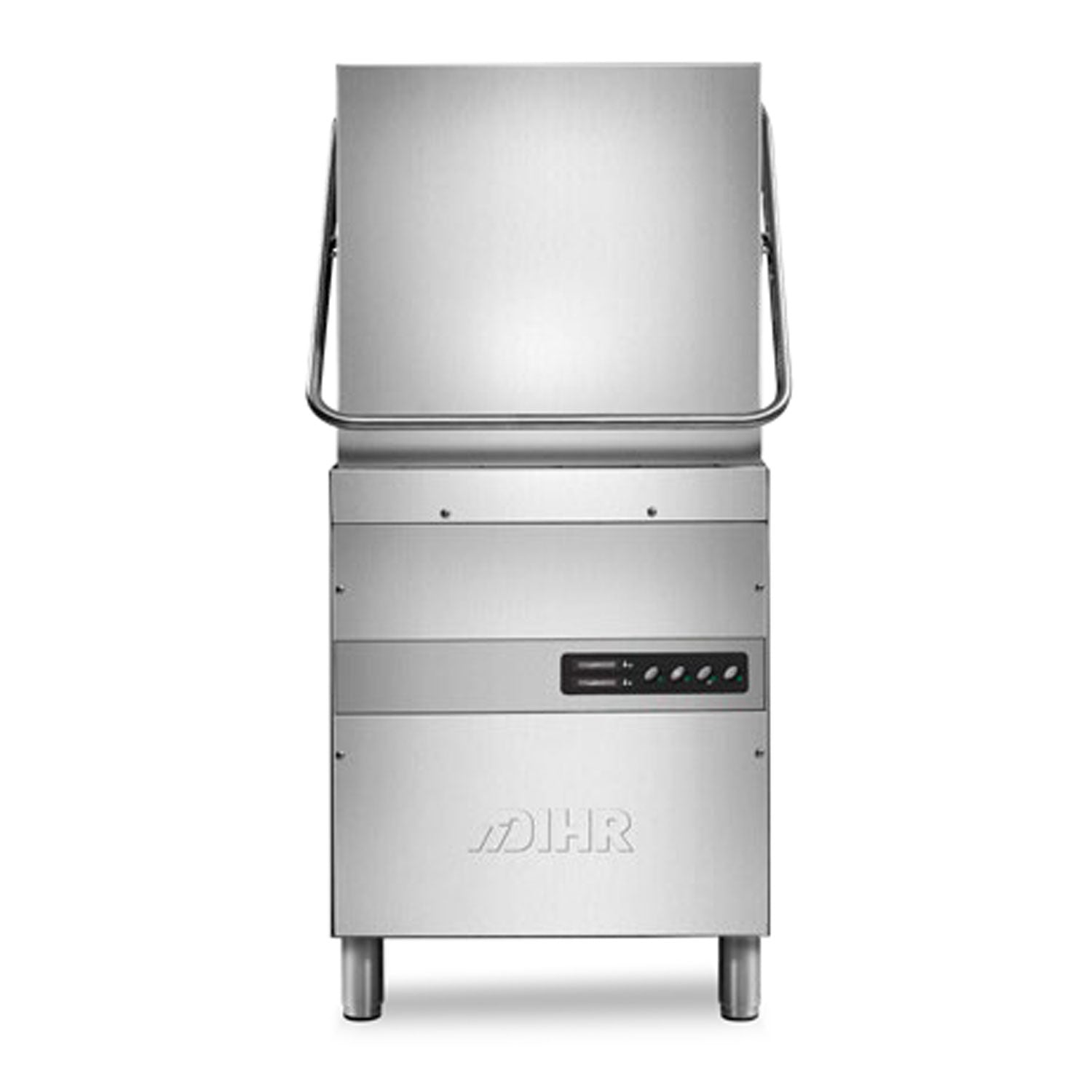

DIHR HT10 Commercial Hood-Type Dishwasher – 500mm Basket

The DIHR HT10 hood-type dishwasher provides fast, practical washing for restaurants, hotels, canteens and busy catering operations. Its 500 × 500mm basket accommodates glassware up to 355mm high and plates up to 410mm in diameter. A 90-second cycle processes up to 40 racks per hour when supplied with 55°C inlet water. Hood-operated start and stop functions support an efficient pass-through workflow, while the deep-drawn tank, removable basket support and composite filtration system simplify cleaning. The included detergent dispenser, rinse-aid dispenser and drain pump support convenient operation. Three-phase electrical connection and installation by a qualified technician are required.

Features & Specifications

• AISI 304 stainless steel body

• Single-skin hood construction

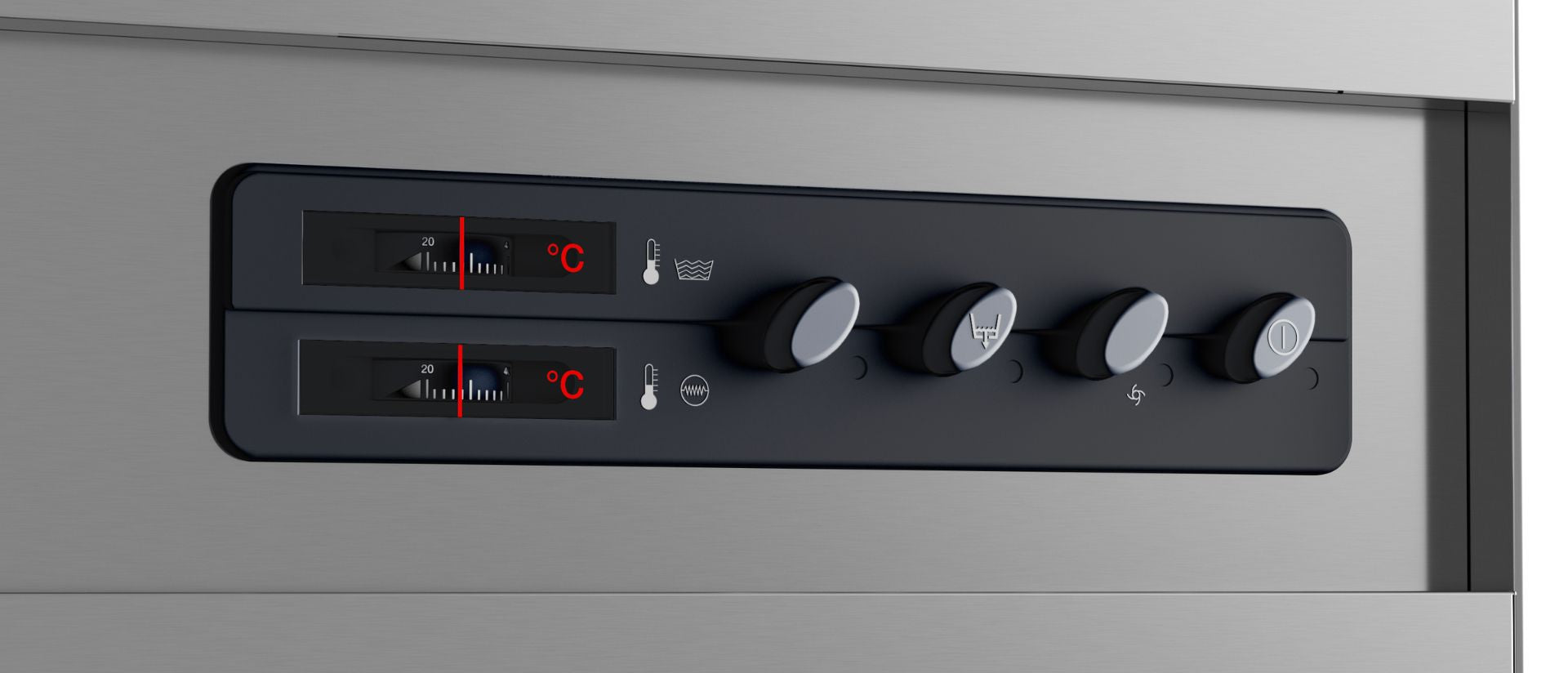

• Hood-operated automatic start and stop

• Single 90-second wash cycle

• Processes up to 40 racks hourly

• Basket size: 500 × 500mm

• Maximum glass height: 355mm

• Maximum plate diameter: 410mm

• Composite wash and rinse arms

• Composite surface and pump filters

• Deep-drawn 30-litre wash tank

• Thermostop-controlled 85°C rinse

• Wash temperature: 55°C

• Water consumption: 2.8 litres

• Linear or corner installation

• Voltage: 380–415V, three-phase

• Installed power: 6.55kW

• Dimensions: 720 × 735 × 1445mm

• Open hood height: 1880mm

• Weight: 100kg

• Qualified technician installation required

What’s in the Box

• 1 × DIHR HT10 Dishwasher
• 1 × Plate rack

• 1 × Mesh rack

• 1 × Cutlery holder

• 1 × Detergent dispenser

• 1 × Rinse-aid dispenser

• 1 × Drain pump

• User documentation, where applicable
