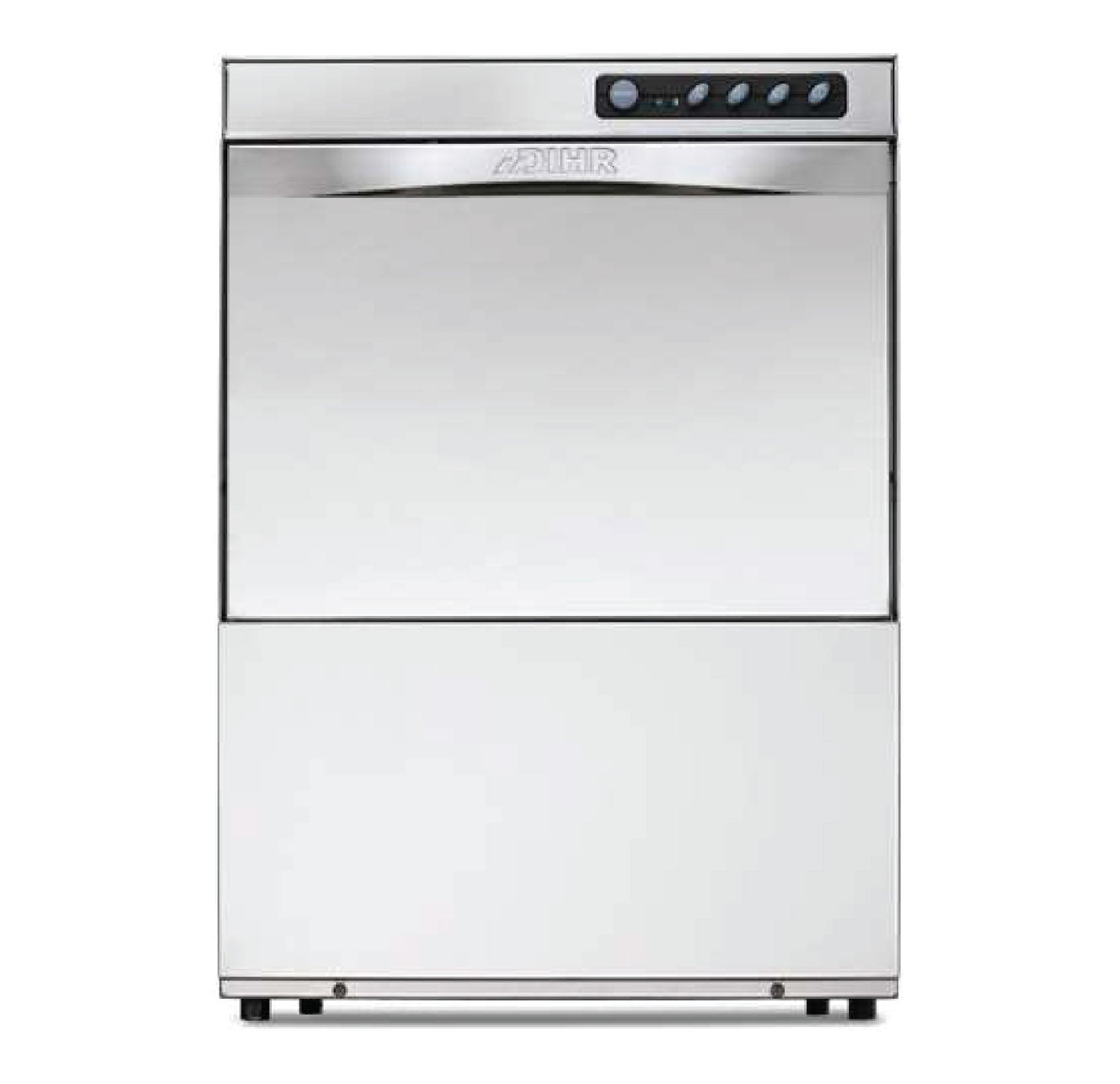

DIHR GS35 Commercial Undercounter Glass Washer √¢ 350mm Basket

The DIHR GS35 undercounter glass washer delivers fast, consistent cleaning for bars, cafes, pubs, restaurants, hotels and canteens. Its compact stainless steel construction fits neatly beneath a counter, while the 120-second wash cycle processes up to 30 racks per hour when supplied with 55C inlet water. A sound- and heat-insulated double-skin door supports quieter operation, and the Thermostop system delays rinsing until the boiler reaches 85C for dependable hygiene. With a 350 — 350mm basket, 195mm glass clearance and water consumption from 1.4 litres per cycle, the GS35 is suited to hospitality businesses requiring clean glassware on demand without excessive space or water usage.

Features & Specifications

• Durable AISI 304 stainless steel construction

• Compact undercounter design for hospitality environments

• Ideal for bars, cafes, pubs, restaurants, hotels and canteens

• Sound- and heat-insulated double-skin door

• Anti-shock door system

• Deep-drawn, sloped tank for improved water drainage

• Non-drip internal roof helps protect washed glassware

• Removable wash and rinse nozzles simplify daily cleaning

• Thermostop system ensures rinsing starts once the boiler reaches 85C

• Integrated rinse aid dispenser

• Wash cycle: 120 seconds

• Maximum productivity: 30 racks per hour with 55C inlet water

• Productivity with 10C inlet water: 18 racks per hour

• Water consumption: 1.4 litres per cycle at minimum pressure

• Basket size: 350 ‚Äî 350mm

• Maximum glass height: 195mm

• Wash temperature setting: 55C

• Rinse temperature setting: 85C

• Tank capacity: 12 litres

• Boiler capacity: 3 litres

• Wash pump flow rate: 120 litres per minute

• Water inlet pressure: 200√¢400kPa

• Water inlet connection: G ¬æ-inch male

• Drain connection: 24mm diameter

• Maximum water discharge level: 65mm

• Supply voltage: 220√¢240V, 50Hz

• Total installed power: 2.59kW

• Dimensions: 400 ‚Äî 495 ‚Äî 585mm

• Weight: 28kg

• Sound pressure level: Below 70dB(A)

• Optional configurations include a drain pump, detergent dispenser, water softener, cold final rinse and round basket, subject to manufacturer confirmation

What’s in the Box

• 1 ‚Äî DIHR GS35 Glass Washer

• 1 ‚Äî Mesh/glass rack

• 1 ‚Äî Plate rack

• 1 ‚Äî Cutlery holder

• User documentation, where applicable
